What we provide
We supply heat-resistant plate for furnace panels, supports and fabricated shells, as full plates or blanks cut to your drawing.
Grades
Compare the grade pages below, then choose the material to suit your operating conditions and applicable product and project standards.
Stock, custom cuts and mill orders
Common specifications and stock
Stock snapshot:
The product-form list shows our regular supply capability. The dated stock table shows only current and common inventory; a form or boundary size not listed there is not a supply limit.
Scroll horizontally to see every column.
| Grade | Specification | Surface / condition | Availability |
|---|---|---|---|
| 309S | 8 × 1500 × 6000 mm | No.1 · Solution annealed | Common specificationIn stock |
| 310S | 8 × 1500 × 6000 mm | No.1 · Solution annealed | Common specificationIn stock |
| 253MA | 4 × 1500 × 6000 mm | No.1 · Solution annealed | Common specificationIn stock |
| 310Si2 | 4 × 1500 × 6000 mm | No.1 · Solution annealed | Common specificationIn stock |
| 309 | 3 × 1500 × 6000 mm | No.1 · Solution annealed | In stock |
| 310 | 10 × 1500 × 6000 mm | No.1 · Solution annealed | In stock |
| 321 | 6 × 1500 × 6000 mm | No.1 · Solution annealed | In stock |
| 321H | 4 × 1500 × 6000 mm | No.1 · Solution annealed | In stock |
Please confirm current quantity, tolerances, documents and delivery in the written quotation.
Available Dimensions
Scroll horizontally to see every column.
| Supply range | Available dimensions | Order details |
|---|---|---|
| Hot-rolled sheet and plate supply range | 3–16 mm thickness × up to 2,500 mm width × lengths up to 13,000 mm | Grade · Product standard · Production source · Quantity · Inspection scope · Quotation confirmation |
| Hot-rolled medium and heavy plate supply range | 16–150 mm thickness × up to 2,500 mm width × lengths up to 13,000 mm | Grade · Product standard · Production source · Quantity · Inspection scope · Quotation confirmation |
The ranges describe supply capabilities, not every grade and size combination. Current stock, custom cuts and mill orders are confirmed separately.
Surface and delivery condition
Hot-rolled plate, cut edges and the agreed finish are matched to fabrication. Flatness is checked at the agreed stage so cut blanks fit the assembly.
Standards
We match the material designation, product standard and delivery condition to the order. Pressure applications also need the applicable product and design requirements; a grade name alone does not establish pressure suitability.
Processing options
We arrange profile cutting, bevels, holes, bending and rolling from the drawing, keeping heat identification linked to cut pieces.
Inspection and documents
We check material identity, dimensions, surface condition and heat traceability against the order. Material test documents are supplied with the agreed document scope; additional testing and third-party inspection can be arranged before production.

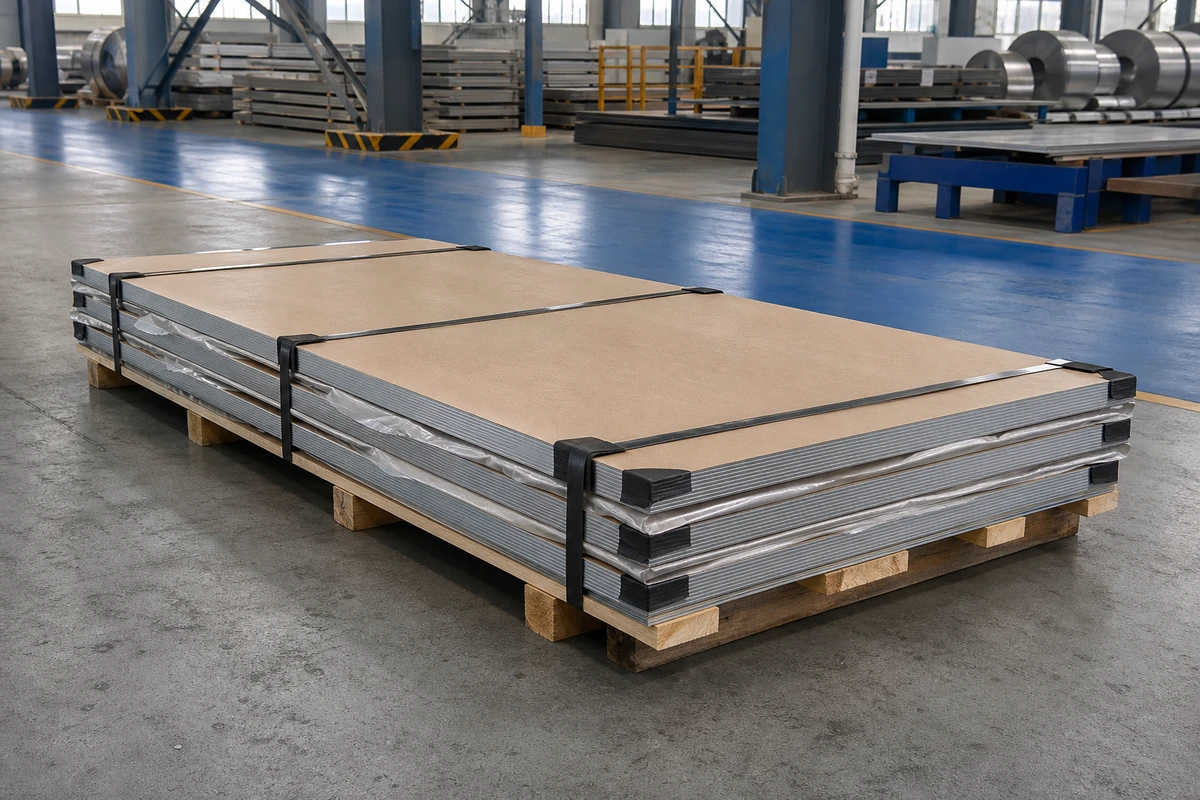

Packing and export delivery
We arrange protection suited to the product: supported flat packs, secured coils, bundles or cases for finished parts. Surface protection, handling access and shipment marks are included in the packing plan.
Related applications
Explore typical components and operating conditions for each industry.
Technical resources
What to Send for a Quote
- Grade designation, governing product standard with edition and required delivery condition.
- Plate thickness, width, length, quantity and the stage at which flatness applies.
- Cutting drawing, blank schedule, edge finish and intended fabrication method.
We normally reply within 1 business day. Technical enquiries may require additional review.
