310 vs 310S Stainless Steel: Carbon, Welding and Order Requirements

310 and 310S are separate purchase grades. In the cited flat-rolled composition summary, the practical specification difference is the carbon maximum: 0.25% for 310 and 0.08% for 310S. That distinction can affect grade selection and welding review, but it does not make 310S universally better. Start with the grade named by the drawing or design specification, then confirm the governing product standard, edition, form, dimensions, condition and inspection scope. If a substitution is proposed, the purchaser and engineering authority should review it against the actual component and service before the order is changed.

The Purchasing Difference in One Minute

The shortest useful answer is that 310 and 310S must not be treated as two labels for one purchase item. The Atlas 310 / 310S / 310H grade sheet gives a flat-rolled composition summary in which 310 has a carbon maximum of 0.25% and 310S has a carbon maximum of 0.08%. In that same table, both rows show chromium at 24.0–26.0% and nickel at 19.0–22.0%. These are specified limits in a secondary summary, not a prediction of the chemistry on any individual heat.

ASTM A240/A240M-26 is the active ASTM specification route for chromium and chromium-nickel stainless plate, sheet and strip used for pressure vessels and general applications. The standard and edition written into the order, together with the exact grade and applicable requirements, control acceptance. A web article, a supplier shorthand, or a cross-reference chart cannot replace that contractual description.

For a time-critical purchase, the safe sequence is simple: freeze the design designation, identify the product form and standard, describe the component and service, verify availability, then review the offered heat and documents. Starting with “310/310S acceptable” without approval criteria transfers a design decision into the quotation process and creates avoidable ambiguity.

Chemistry and Grade Identity

Read the carbon maximum in its source scope

The letter S is commercially important because it identifies the lower-carbon route in this pair. It should not be interpreted as a general quality rank. The cited Atlas table shows the carbon maxima while keeping the same chromium and nickel ranges for the two rows. A buyer can therefore explain the published distinction precisely without claiming that every 310 heat contains more carbon than every 310S heat. A maximum is an acceptance boundary; an actual heat analysis can fall anywhere permitted by the ordered specification.

This distinction matters at three different levels. First, it is part of grade identity: material offered as 310S must satisfy the ordered requirements for 310S. Second, carbon can be relevant to the engineering review of welding, elevated-temperature strength and exposure after fabrication. Third, the chemistry must be traceable through the inspection document for the delivered heat. None of those points permits a buyer to infer component performance from carbon alone.

The Atlas sheet is useful secondary guidance, but it also illustrates why source scope matters. It identifies its property table as a flat-rolled summary and warns that other products such as pipe and bar can have similar but not necessarily identical requirements in their respective specifications. Therefore, do not lift the plate/sheet/coil values into a tube, bar or forged-part RFQ without checking the product standard that actually applies.

Keep naming routes separate from contractual equivalence

Outokumpu publishes its 310S producer route as Type 310S / UNS S31008 and EN 1.4845. Those visible producer identifiers are useful when a drawing, mill quotation and inspection document use different systems. They are not permission to delete the product standard, condition or edition from the order.

ISO’s catalogue records ISO 15510:2014 as the published current edition, confirmed in 2025. That public catalogue metadata establishes the current edition and abstract scope only; it does not substantiate individual designation or equivalence rows. Obtain and review the ordered standard when its detailed content is required, and use primary producer documents only within their stated product route.

Cross-standard rows answer “which names should engineering compare?” They do not answer “will these products meet every requirement of each other’s standards?” Standards can differ in scope, chemical limits, mechanical requirements, heat treatment, dimensions, tolerances, testing, marking and certification. The purchaser should select one governing order route and treat other names as controlled cross-references. If the drawing says one route and the offered material says another, resolve the difference before manufacture or cutting.

The MTC review should confirm the ordered grade, heat number, product standard and edition, product form, dimensions, condition and reported tests. A certificate marked only “310” is not automatically evidence of 310S, even if its reported carbon happens to be below 0.08%. Grade identity comes from compliance with the complete ordered route, not from one chemistry result viewed in isolation.

High-Temperature Service Inputs

A material comparison for furnace or thermal equipment needs an operating envelope, not a single temperature. Ask for the normal operating temperature, peak temperature, duration at peak, heat-up and cooldown rate, shutdown frequency and expected number of cycles. Add the local metal temperature when it may differ from the furnace set point. A burner-side baffle, basket corner, radiant-tube return bend and outer casing can experience very different thermal histories in the same unit.

Atmosphere belongs beside temperature. Record whether conditions are oxidizing, carburizing, nitriding, reducing, sulphur-bearing or low in oxygen. Include water vapour, combustion products, ash, salts, process carryover and deposits. A protective oxide that behaves well in one gas chemistry may not behave the same way after a process upset or under a deposit. This is why a published air-service statement must not be converted into a universal service-temperature promise.

Mechanical duty is the next filter. Give the sustained load, pressure if applicable, support spacing, section size, weld restraint and allowable distortion. At elevated temperature, the component may be governed by creep, thermal expansion, thermal fatigue, oxidation loss or a combination. The grade name does not establish allowable stress, component life or maintenance interval. Those decisions belong to the design code and engineering authority using the actual geometry and duty.

The distinction between 310, 310S and other 310-family routes also deserves care. The Atlas sheet discusses 310H as a carbon-controlled route for high-temperature strength and notes that lower carbon can reduce high-temperature strength relative to 310H. That does not turn 310 into 310H, nor does it prove that 310S is unsuitable for a component. It shows why “lower carbon is always better” is not a sound high-temperature selection rule. Specify the approved grade rather than asking a supplier to optimize one chemistry number.

For replacement parts, collect the installed material designation, original drawing, observed damage location, operating history and any available inspection records. Oxide spallation, distortion, cracking or thinning may point to different mechanisms. A like-for-like replacement can still require engineering review if the duty, geometry, support or fabrication route has changed.

Welding and Fabrication

The Atlas sheet describes the 310 family as having good welding characteristics and generally recommends 310S electrodes for fusion welding. That is useful planning guidance, not a complete welding procedure. A production order still needs the applicable WPS/PQR, base-metal grouping, qualified thickness range, welding process, consumable classification, joint preparation, shielding, heat-input controls, interpass controls and inspection criteria.

Start with product identity at the fabrication boundary. The fabricator must know whether the material is ordered as 310 or 310S and must keep heat traceability through cutting and forming. When remnants or parts are transferred between workstations, the marking and transfer method should preserve the link to the MTC without inventing a new grade label. If positive material identification is required, state the method, extent and acceptance criteria in the order.

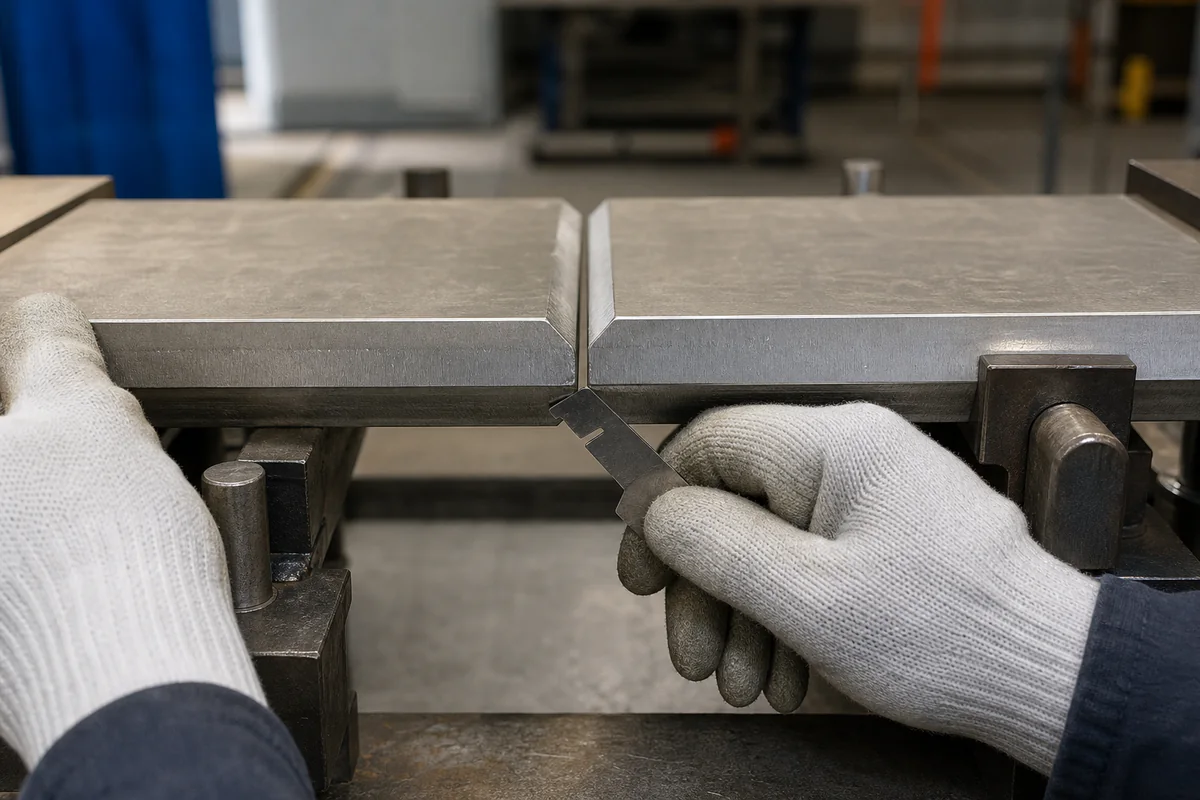

Joint design and restraint matter because austenitic stainless steels expand during heating and can distort when heat input and sequence are not controlled. Give the finished geometry, tolerance-critical surfaces, support arrangement and weld sequence to the fabricator. For a formed shell, tray or basket, bend radii, forming direction, intermediate condition and any post-fabrication heat-treatment requirement should be reviewed before material is released.

Surface preparation is part of the high-temperature system. Avoid carbon-steel contamination from shared tools or work areas. Define cleaning after forming and welding, removal of heat tint where required by the project, and the final condition before service. These controls should be linked to the qualified process and inspection plan rather than added as vague language such as “weldable material.”

If a quotation proposes 310S in place of 310 because it is more available, do not approve the change from the welding argument alone. Review chemistry, specified properties, service, forming, weld procedure, product standard, document package and design approval together. The approved substitution should be written into the revised purchase description so the delivered marking and MTC are evaluated against the same decision.

Product Form and Documentation

“310 plate” and “310S tube” are not complete purchasing descriptions. Product form determines which standard, dimensional rules, manufacturing route and tests apply. Identify plate, sheet, strip, coil, seamless tube, welded tube, pipe, bar, forging, flange, fitting or finished fabrication. Then state dimensions, tolerances, delivery condition, finish, edge, length and any processing allowance.

ASTM A240/A240M-26 covers plate, sheet and strip. It should not be used as a universal certificate label for every form. A pipe, tube, bar or forging order needs its own applicable product standard, and the grade availability within that standard must be confirmed. If a fabricated assembly contains more than one form, list the controlled material route for each pressure or load-bearing item.

For flat products, define thickness, width, length or coil data, surface condition, flatness, edge condition and any protective film restrictions. For cut parts, add drawing revision, quantity per item, cutting method, dimensional tolerance, marking location and remnant control. The material standard does not replace the finished-part drawing.

The document package should be agreed before production. State the required inspection-document type, heat analysis, mechanical results, dimensional report, traceability record, NDT reports, PMI report and third-party witness points where applicable. Ask the supplier to identify exceptions in the quotation rather than after shipment. The final MTC review should compare the reported heat with the exact grade and standard on the purchase order.

Do not describe a stock position, completed test or customer approval unless it is documented for the actual enquiry. Hechuang can review an RFQ and coordinate a supply route, but the quotation must distinguish published capability from material reserved for an order. Availability, production route and inspection timing should be confirmed against the requested quantity and delivery date.

Project Solution

When to choose

Consider a generic furnace-fixture enquiry in which the drawing says “310,” the buyer’s internal note says “310S preferred,” and the fabricator asks whether its existing WPS can be used. No material should be released while those three instructions conflict. A defensible project solution follows a controlled sequence:

1. Freeze the design inputs. Engineering records the component function, atmosphere, temperature cycle, load, section, supports, target maintenance approach and governing code.
2. Resolve grade identity. The purchaser confirms whether Type 310, Type 310S, or both under stated approval criteria are permitted. Cross-system names are recorded only as references.
3. Select the product route. The team names the standard and edition for the actual form, along with dimensions, condition, tolerances and required processing.
4. Review fabrication. The fabricator checks forming, joint design, qualified WPS, filler, heat controls, cleaning, distortion controls and inspection against the selected grade.
5. Align the quotation. Each offered route identifies the grade, standard, origin or mill route where relevant, exceptions, document package, lead-time basis and validity.
6. Approve before manufacture. Any deviation is accepted in writing by the purchaser and engineering authority, then carried into the purchase order.
7. Close the traceability loop. Incoming inspection matches markings, heat numbers, dimensions and MTC data to the approved order before cutting.

This workflow does not claim a customer project, delivered order or successful test. It is a repeatable way to keep a material-selection question from becoming a certificate discrepancy. Where data are incomplete, the correct result is an open technical query, not an invented service limit.

RFQ Checklist

What to include in the RFQ

Send enough information for the supplier to quote one controlled route rather than guess between two grades:

• exact grade designation, naming system, product standard and edition;
• permitted alternative, the approval authority and the written acceptance criteria, if any;
• product form, thickness or wall, width or diameter, length, quantity and unit convention;
• delivery condition, finish, edge, flatness, straightness and dimensional tolerances;
• continuous, peak and upset temperatures plus heat-up, cooldown and shutdown frequency;
• gas chemistry, oxygen potential, sulphur, carbon activity, nitrogen, water vapour and deposits relevant to the service review;
• component drawing and revision, load, pressure, supports, restraint and corrosion allowance;
• cutting, forming, machining, welding, filler, WPS/PQR and post-fabrication requirements;
• marking, heat traceability, PMI, NDT, dimensional inspection and witness requirements;
• inspection-document type and the exact chemistry, mechanical and supplementary records needed;
• packing, destination, delivery date and any staged-release or third-party timing constraints.

If the design allows pricing for both routes, request two clearly separated quotation lines. Each line should identify its own grade, standard, form, condition, document scope and exceptions. Avoid a combined line reading “310/310S” unless the engineering approval criteria are written into the enquiry.

For supporting context, review the 310S authority hub and the 310S plate supply route. Submit the RFQ summary first through Request a Quote. After sales replies, transfer controlled drawings and files through info@hechuangss.com or WhatsApp at +86 15251530098. The website form does not accept uploads. The technical review should clarify the order route before commercial confirmation.

Conclusion

The practical 310-versus-310S distinction is precise but not simplistic. In the cited flat-product summary, 310 allows up to 0.25% carbon and 310S up to 0.08%, while the listed chromium and nickel ranges are the same. That evidence explains grade identity; it does not prove that either route is universally better or interchangeable.

A reliable purchase links the approved grade to the governing product standard and edition, actual form, service envelope, fabrication procedure and inspection documents. Keep designation cross-references separate from contractual equivalence, require written approval for substitutions, and verify the delivered heat against the purchase order. That is the difference between a grade comparison and an auditable material decision.
