What we provide
We supply seamless or welded pipe and tube for furnace and process components, with wall thickness, delivery condition and ends matched to the order.
Grades
Compare the grade pages below, then choose the material to suit your operating conditions and applicable product and project standards.
Stock, custom cuts and mill orders
Common specifications and stock
Stock snapshot:
The product-form list shows our regular supply capability. The dated stock table shows only current and common inventory; a form or boundary size not listed there is not a supply limit.
Scroll horizontally to see every column.
| Grade | Specification | Surface / condition | Availability |
|---|---|---|---|
| 309S | OD 168.3 × 7.11 wall × 6000 mm | Pickled · Solution annealed | Common specificationIn stock |
| 310S | OD 108 × 3 wall × 6000 mm | Pickled · Welded / solution annealed | Common specificationIn stock |
| 309 | OD 114.3 × 6.02 wall × 6000 mm | Pickled · Solution annealed | In stock |
| 253MA | OD 168.3 × 7.11 wall × 6000 mm | Pickled · Solution annealed | In stock |
| 321 | OD 89 × 4 wall × 6000 mm | Pickled · Solution annealed | In stock |
| 321H | OD 114.3 × 6.02 wall × 6000 mm | Pickled · Solution annealed | In stock |
| 347 | OD 57 × 3.5 wall × 6000 mm | Pickled · Solution annealed | In stock |
| 347H | OD 57 × 3.5 wall × 6000 mm | Pickled · Solution annealed | In stock |
Please confirm current quantity, tolerances, documents and delivery in the written quotation.
Available Dimensions
Scroll horizontally to see every column.
| Supply range | Available dimensions | Order details |
|---|---|---|
| Seamless pipe and tube supply range | OD Φ6–Φ914 mm × 0.5–88 mm wall thickness | Grade · Product standard · Production source · Quantity · Inspection scope · Quotation confirmation |
| Welded pipe supply range | OD Φ15–Φ2,200 mm × 0.5–80 mm wall thickness × lengths up to 12,000 mm; maximum OD and maximum wall are not one combined size | Grade · Product standard · Production source · Quantity · Inspection scope · Quotation confirmation |
The ranges describe supply capabilities, not every grade and size combination. Current stock, custom cuts and mill orders are confirmed separately.
Surface and delivery condition
Inside and outside surfaces, heat-treatment condition, straightness and end condition are defined for the selected construction and tubular product standard.
Standards
We match the material designation, product standard and delivery condition to the order. Pressure applications also need the applicable product and design requirements; a grade name alone does not establish pressure suitability.
Processing options
We arrange cut lengths, end preparation and drawing-based fabrication. The dimensional standard and test method are matched to the ordered tube; pressure duty is reviewed separately.
Inspection and documents
We check material identity, dimensions, surface condition and heat traceability against the order. Material test documents are supplied with the agreed document scope; additional testing and third-party inspection can be arranged before production.

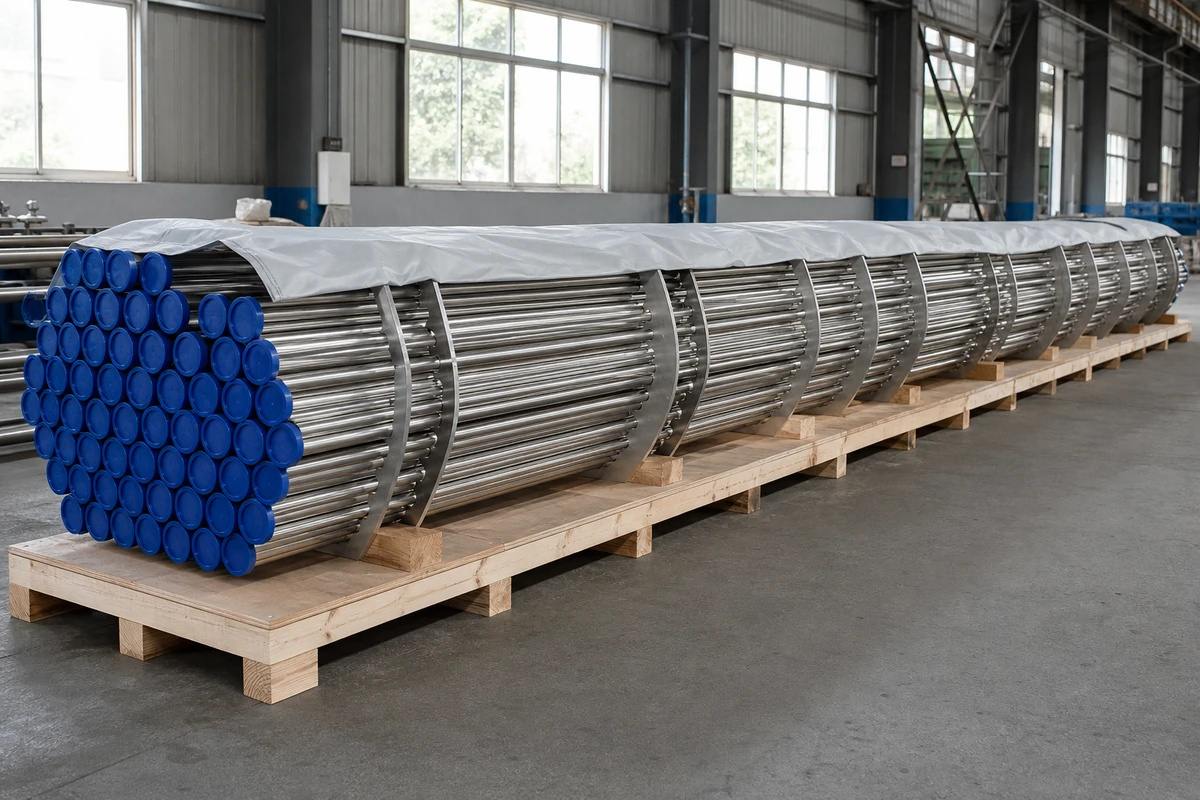

Packing and export delivery
We arrange protection suited to the product: supported flat packs, secured coils, bundles or cases for finished parts. Surface protection, handling access and shipment marks are included in the packing plan.
Related applications
Explore typical components and operating conditions for each industry.
Technical resources
What to Send for a Quote
- Grade designation, product standard with edition and seamless or welded construction.
- Governing dimensional standard, OD, wall thickness, length, quantity and heat-treatment condition.
- Required test method, end preparation, fabrication drawing and acceptance criteria.
We normally reply within 1 business day. Technical enquiries may require additional review.
