Overview
We supply 347 in the required product form and delivery condition. State the governing standard, dimensions, inspection and MTC requirements.
Standards & Designations
- Order as 347 under the governing product standard
State the selected designation, complete product standard, edition and purchaser specification in the RFQ and purchase description. Similar grade names are not automatically interchangeable.
Chemical Composition
347 uses niobium stabilization. Compare with titanium-stabilized 321 for sensitization-sensitive welded service and with 347H for controlled higher-carbon hot-load requirements.
Scroll horizontally to see every column.
| Property | Value | Unit |
|---|---|---|
| C | 0.05 | mass % |
| Cr | 17.5 | mass % |
| Ni | 9.5 | mass % |
| Nb | Added | mass % |
Reference basis: Core 347 / EN 1.4550 · flat product · typical producer values · room temperature · typical values.
Mechanical Properties
Stabilization addresses sensitization; it is not a mechanical-strength or maximum-temperature rating. For sustained load, compare creep data for the ordered condition.
Scroll horizontally to see every column.
| Property | Value | Unit |
|---|---|---|
| 0.2% proof strength, Rp0.2 | ≥220 | MPa |
| 1.0% proof strength, Rp1.0 | ≥250 | MPa |
| Tensile strength, Rm | 520–720 | MPa |
| Elongation after fracture | ≥40 | % |
Reference basis: Core 347 / EN 1.4550 · cold-rolled strip and sheet · solution annealed · room temperature · ranges.
Physical Properties
Account for austenitic thermal expansion in welded assemblies. Weight estimates need a density matched to the ordered grade and condition.
Scroll horizontally to see every column.
| Property | Value | Unit |
|---|---|---|
| Density at 20°C | 7.9 | kg/dm³ |
| Modulus of elasticity at 20°C | 200 | GPa |
| Thermal expansion, 20–100°C | 16.0 | 10⁻⁶/K |
| Thermal conductivity at 20°C | 15 | W/m·K |
| Specific heat capacity at 20°C | 500 | J/kg·K |
| Electrical resistivity at 20°C | 0.73 | µΩ·m |
Reference basis: Core 347 / EN 1.4550 · flat product · typical producer values · room temperature · typical values.
High-Temperature Characteristics
Ti or Nb stabilization helps address sensitization in welded or elevated-temperature service. Gas chemistry, corrosion and load still determine suitability.
Available Product Forms
Choose the form that fits the component geometry and fabrication plan, then use its product page to prepare dimensions, finish, processing, inspection and packing requirements.
The product-form list shows our regular supply capability. The dated stock table shows only current and common inventory; a form or boundary size not listed there is not a supply limit.
Common specifications and stock
Stock snapshot:
The product-form list shows our regular supply capability. The dated stock table shows only current and common inventory; a form or boundary size not listed there is not a supply limit.
Scroll horizontally to see every column.
| Product form | Specification | Surface / condition | Availability |
|---|---|---|---|
| Cold-rolled sheet | 2 × 1500 × 3000 mm | 2B · Solution annealed | In stock |
| Hot-rolled plate | 8 × 1500 × 6000 mm | No.1 · Solution annealed | In stock |
| Seamless pipe | OD 57 × 3.5 wall × 6000 mm | Pickled · Solution annealed | In stock |
| Round bar | Ø30 × 6000 mm | Pickled · Hot rolled / solution annealed | In stock |
Please confirm current quantity, tolerances, documents and delivery in the written quotation.
Available Dimensions
We quote dimensions and tolerances for your selected form and quantity; there is no single stock-size range covering every grade and form.
Processing & Welding

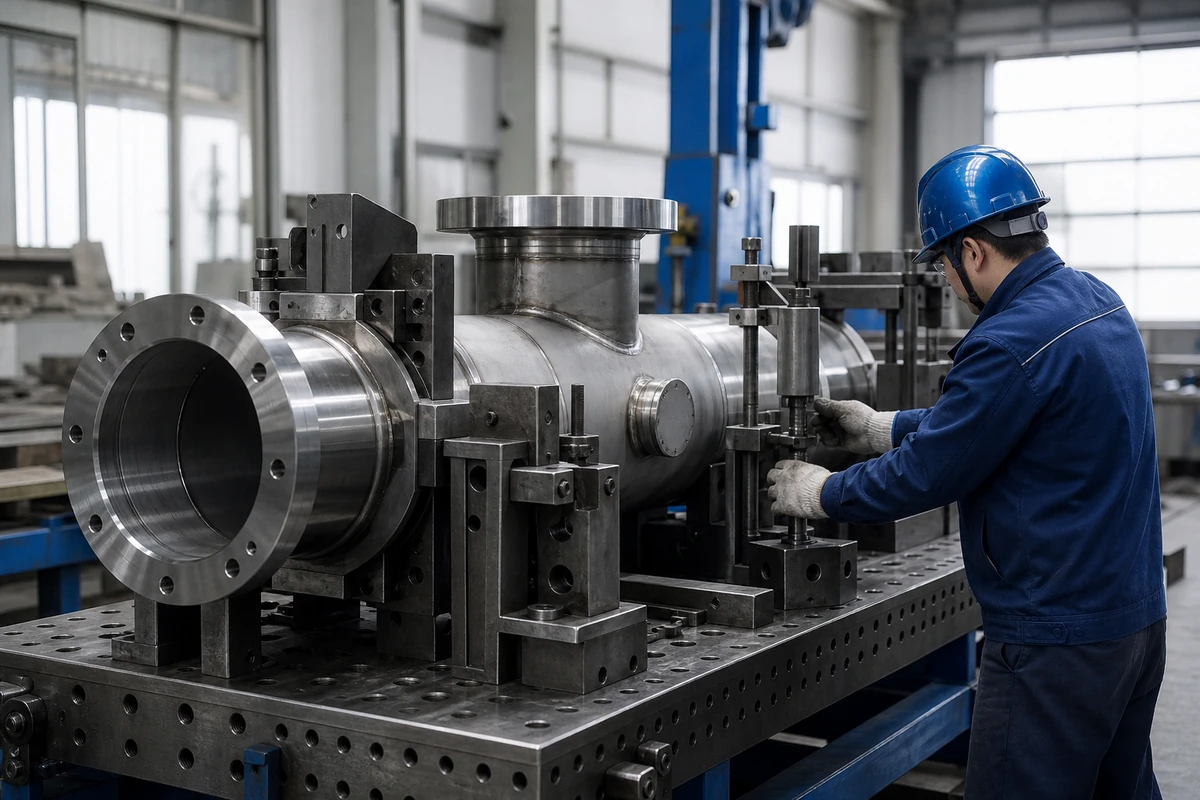

Share the drawing, delivery condition, forming method, joint design, filler requirements, WPS/PQR, heat input, cleaning or passivation and NDT scope. Drawing geometry and the ordered standard help the fabricator prepare the process plan and qualified procedure.
Processing & WeldingIndustry Applications
Consider welded process equipment, hot piping and heat-exchanger components where sensitization and corrosion must be assessed together.
Inspection Options
- MTC identifying the heat, grade, ordered standard and reported test results.
- Dimensional, surface, traceability and marking records specified by the purchase order.
- NDT, PMI, third-party inspection or additional test reports only when ordered.
- EN 10204 3.1 wording only when the issued certificate explicitly carries that type.
Related Grades
Compare grade families, product forms and service inputs before requesting an alternative. Any substitution must follow the governing standard, design basis and project approval process.
What to Send for a Quote
Include the exact grade designation, governing product standard and edition, product form, dimensions, condition, quantity, service inputs, inspection scope, certificate type, packing and destination.
We normally reply within 1 business day. Technical enquiries may require additional review.
